Sugon – 3005D – DC Power – Supplly

Key Features and Specifications

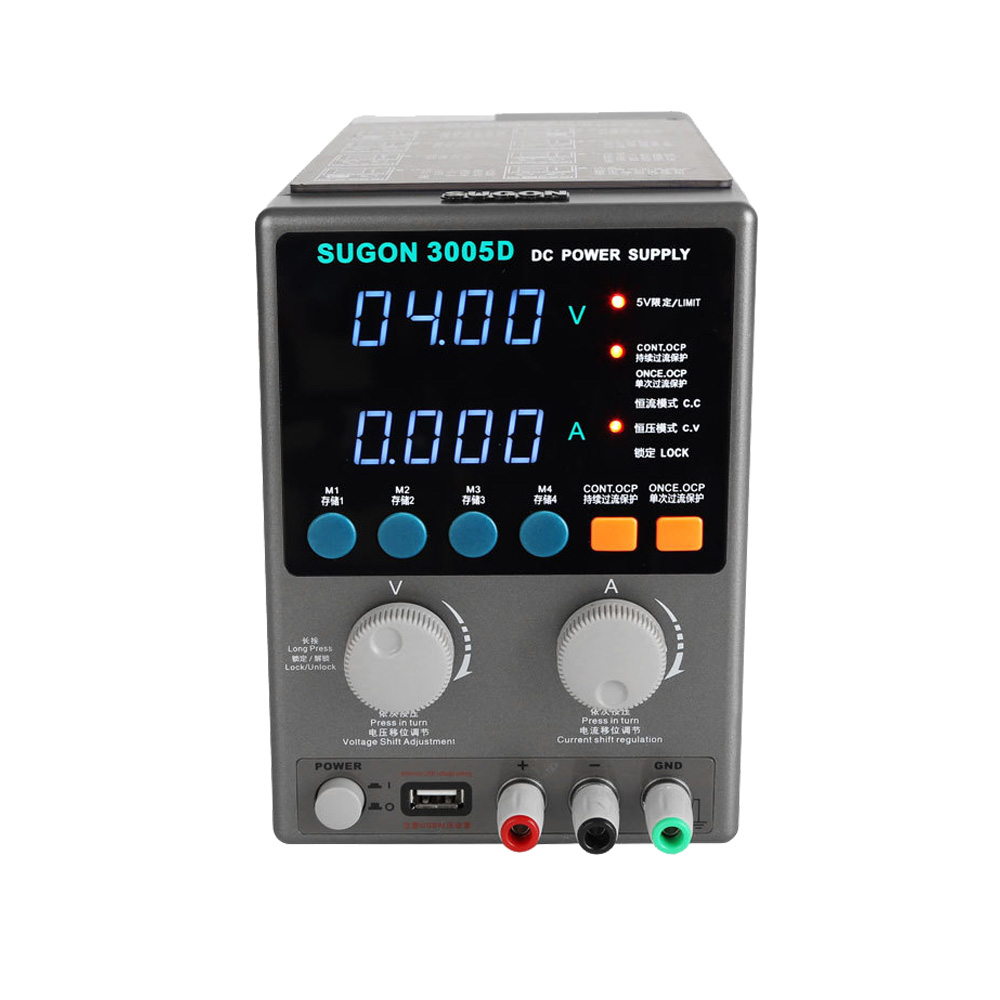

• High Precision: Features a 4-digit LED digital display that provides highly accurate readouts of voltage and current values (down to the milliampere resolution), ensuring precise control for sensitive tasks.
• Adjustable Output: The voltage (0-30V) and current (0-5A) are continuously adjustable, allowing users to dial in exact power requirements for specific projects.
• Memory Modes: Includes four customizable memory channels (M1-M4) to save and quickly recall frequently used voltage and current settings.
• Multiple Protection Functions: Equipped with safety features like Over Current Protection (OCP), Over Temperature Protection (OTP), and Over Power Protection (OPP) to protect connected devices and the unit itself from accidental damage.
• “Short Killer” Function: Some versions (e.g., 3005D with memory option) have a built-in “short killer” function to help identify and protect against short circuits.
• Intelligent Cooling System: A temperature-controlled fan automatically activates when components reach a certain temperature, ensuring efficient heat dissipation, low noise, and a longer lifespan for the power supply.
• Dual Adjustment Modes: Offers both normal knob-based adjustments and a rapid adjustment mode (by long-pressing V/A buttons) for quickly setting larger voltage/current changes.
• Adjustable USB Output: Includes a front-panel USB port with adjustable output for charging or powering USB-specific devices during repair.

Applications

The SUGON 3005D is a versatile tool used for:

• Mobile Phone & Computer Repair: Diagnosing power issues, testing components, and powering motherboards.
• Production Line Testing: Ensuring consistent power for product testing environments.
• Laboratory & Research: Providing a stable and adjustable power source for experiments and teaching.
• Battery Charging: Safely charging various types of batteries with controlled current and voltage.

Specification :

Operating Conditions :

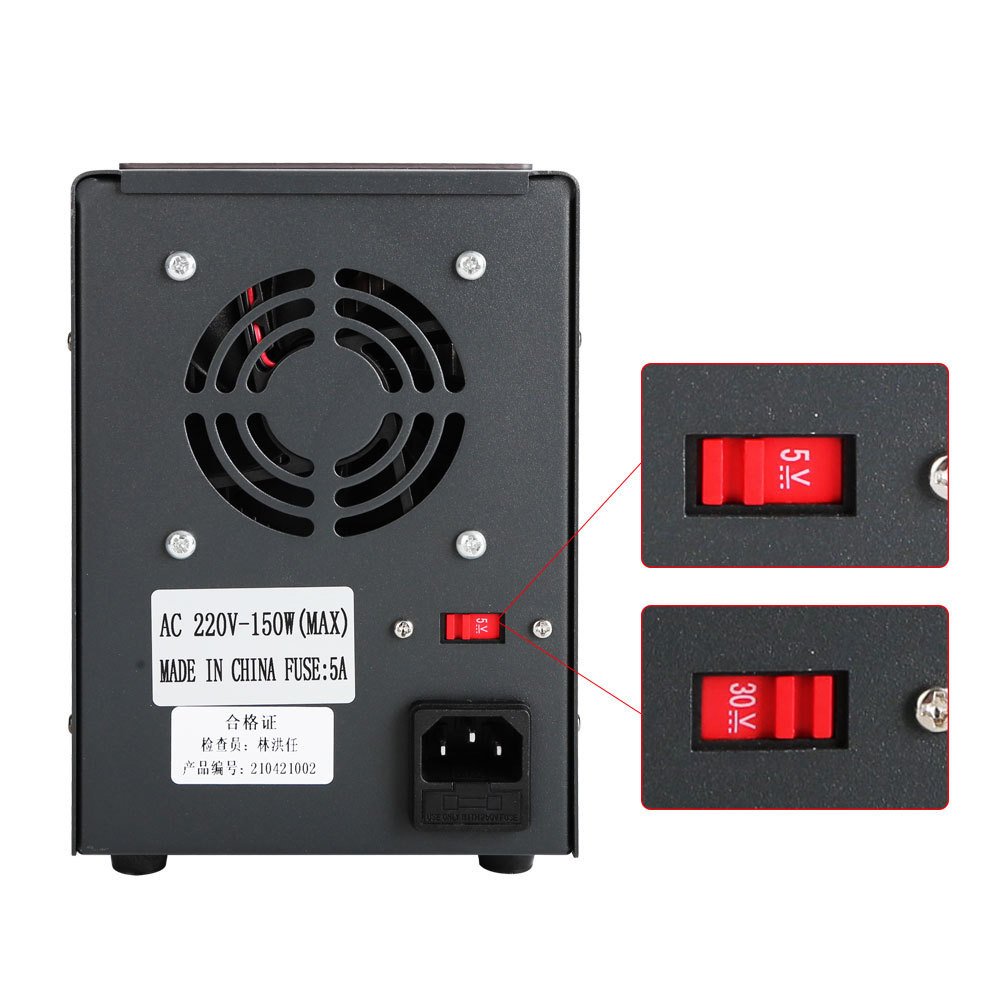

• Input voltage: 220V /
• Frequency range: 50- 60Hz
• Operating temperature : 32-104 ℉ (0-40 ºC)
• Operating humidity : < 80%RH
• Storage temperature : 32-158 ℉ (0-70 ºC)
• Storage humidity : < 70%RH

Stable Voltage :

• Output Voltage Range: 0-30V Continuously adjustable
• Setup Resolution : 10 mV
• Setup Accuracy : <0.05% +20 mV
• Ripple : < 1mVRMS
• Read back Accuracy: 10 mV
• Temp. Coefficient : < 0.1% + 10mV
• Read back Temp. Coefficient : < 100 ppm+10 mV

Stable Current :

• Output Current Range: 0-5A Continuously adjustable
• Setup Resolution : 1 mA
• Setup Accuracy : <0.1% +3 mA
• Ripple : < 3mARMS
• Read back Accuracy: 1 mA
• Temp. Coefficient : < 0.1% + 5mA
• Read back Temp. Coefficient : < 100 ppm+5 mA
• Dimensions : 4.3 x 6.1 x 10.25 inch (110 x 156 x 260mm)

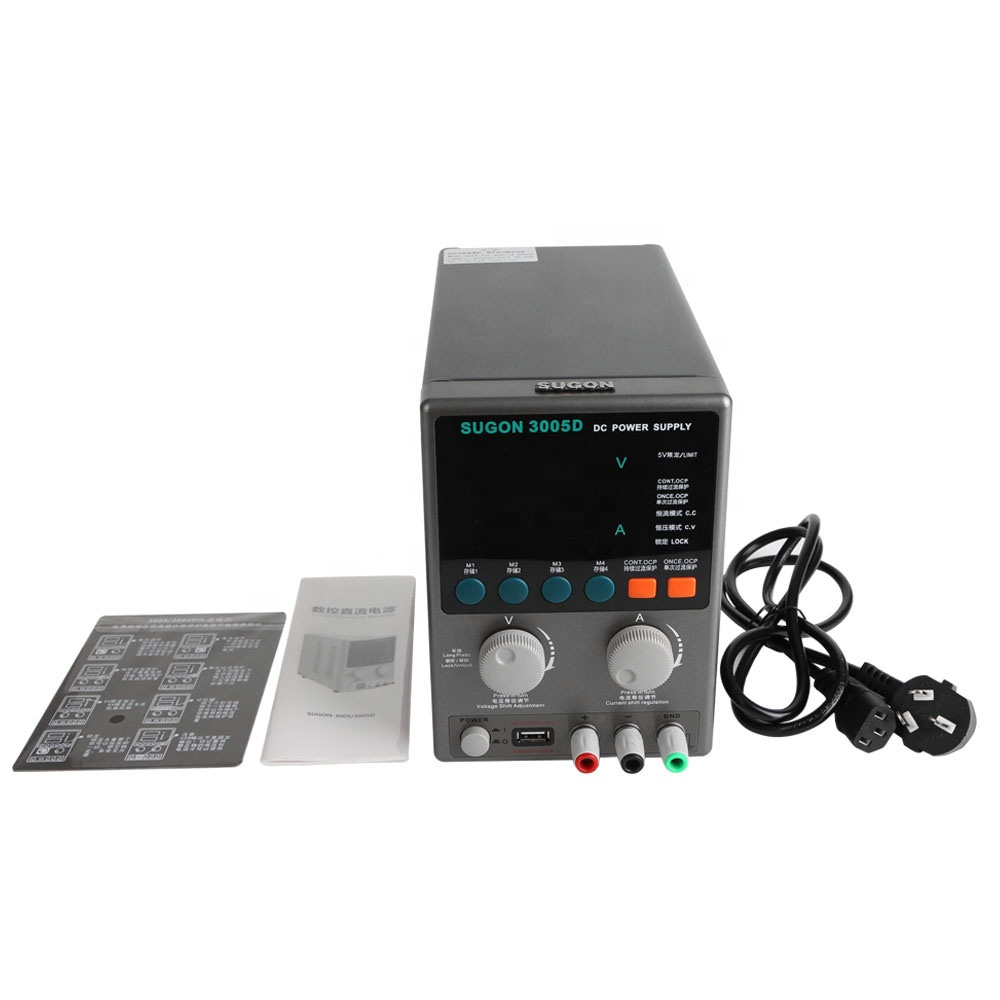

Package includes :

1 x Adjustable DC Power Supply

1 x Power line
